In today’s world, the focus on electrical safety can never be overstated, and one can never emphasize a solid, reliable earthing system enough. Now that all types of solutions are prevailing and providing electrical earthing solutions, copper bonded earthing electrodes are starting to become the yardstick of ensuring the maximum protection against electrical faults and lightning. This article attempts to explore the reasons for the status of these electrodes as being the final solution for safe grounding and the hosts of riches that could be yours for the taking through these electrodes to improve your electrical infrastructure.
1. Understanding the Importance of Effective Earthing Systems
At first, it becomes very important to understand why effective earthing systems become that much vital.
1.1 Basic Principles
Earthing or grounding in electrical installations serves several important purposes: safety for human lives by giving fault currents a safe way of dissipation to the ground. Equipment Protection Proper grounding prevents the destruction of highly expensive electrical equipment as a result of voltage surges or lightning strikes.
1.2 Voltage Stabilization
A good grounding system will provide a reference point for the regulation of voltage, and this is important for most electrical and electronic equipment in good operation.
1.3 Noise Reduction
Correct grounding will help reduce electromagnetic interference and electrical noise in sensitive equipment to a great extent. Proper grounding meets many, if not all, electrical codes and standards to help meet safety and insurance requirements.
Given these are critical roles, it is easy to see why the choice of earthing electrodes can have a major impact on the overall performance and safety of an electrical installation. And this is where copper bonded chemical earthing electrodes enter the picture, offering superior performance and reliability.

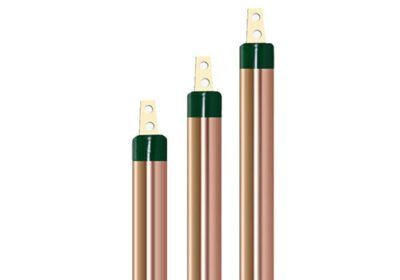

2. What Makes Copper Bonded Earthing Electrodes Stand Out?
Copper bonded grounding rods form the ideal mixture of the best of two worlds–superlative conductivity of copper and toughness and economy of steel. Here is why:
2.1 Unique Design
Copper bonded electrodes are made through a patented process which molecularly bonds a high purity layer of copper unto a core of steel. It’s made seamless to the extent that the two metals become inseparable into one product that offers:
The conductivity of copper is higher; In steel, the mechanical strength and rigidity are excellent. Resistant to corrosion and degradation of the material
2.2 Superior Conductivity
On matters of electrical conductivity, copper offers no compromise. It is only secondary to silver. The copper layer in these electrodes serves to guarantee that current flow and dissipation are at optimal levels, hence very effective for grounding purposes.
2.3 Corrosion Resistance
This gives excellent corrosion protection by copper coating even under very aggressive soil conditions, ensures a longer life with consistent performance over time, and makes the copper bonded chemical earthing electrodes dependable for the long term.
2.4 Cost-Effectiveness
While the pure copper electrodes possess very good conductivity, their cost is prohibitively high for extensive installations. In such applications, copper clad steel earth electrodes are viable alternatives.
3. Key Benefits of Copper Bonded Earthing Electrodes
The inherent properties of the copper bonded earthing electrode result in several benefits for the user.
3.1 Improved Safety
Superior conductivity of copper throughout the cross-section electrode rapidly and effectively dissipates utility fault currents and surges in lightning, thus offering improved safety of personnel and appliances.
3.2 Long Life and Dependability
Because they are corrosion resistant, copper-bonded grounding rods last longer in service than other materials, even under harsh conditions. That means a more reliable earthing system since replacements and service get lower.
Copper bonded electrodes can be found in a wide variety of applications including but not limited to residential and commercial buildings, industrial facilities, and telecommunication infrastructures. Their robust construction means they are suitable for shallow and deep earth installations.
3.3 Compliance with Standards
These electrodes meet or exceed international standards in grounding systems, including but not limited to IEEE, UL, and IEC specifications, hence your earthing system will be compliant with the relevant regulations and standards.
3.4 Improved Overall System Performance
Copper bonded electrodes provide low resistance path to the ground. Therefore, they better the performance to the overall electrical system in the following terms: electromagnetic interference is reduced, better quality of power, operations of sensitive electronic equipment’s are more stable.
4. Some Installation Tips for Copper Bonded Earthing Electrodes
In order to ensure best results for your copper bonded chemical earthing electrodes, the following are some of the tips for the installation:
4.1 Soil Verification
Before installation, carry out a thorough soil resistivity test to find the best placement and depth of your electrodes. This will give you the best earth contact and maximize system effectiveness.
4.2 Proper Depth
Set electrodes to a sufficient depth to reach moisture-retaining soil layers. This normally requires a minimum of 8 to 10 feet deep; however, in areas with high soil resistivity, deeper installations may be advisable.
4.3 Backfill Material
The electrodes shall be backfilled using conductive materials together with bentonite, a special earthing compound. This improves the level of the conductivity around it while it keeps the moisture.
4.4 Good Work on Connectors
All connections between the electrodes and grounding conductors are to be tighter and well protected against corrosion. Use appropriate connectors and joint compounds for maintaining integrity in the system.
4.5 Multiple Electrode Systems
For larger installations or areas with high resistivity in the soil, it is important to consider having several electrodes connected in parallel. This will drastically reduce the overall earth resistance of the system.
5. Maintenance and Long Life of the Earthing System
Although designed for lifetime performance, maintenance is an integral factor that you need to perform for optimal performance over time:
5.1 Regular Inspections
Do visual inspections of accessible parts of the earthing system annually to check for initial signs of corrosion, damage, or loose joints.
5.2 Earth Resistance Testing
Carry out earth resistance tests periodically but at least annually to ensure the system has resistance that is within acceptable limits. A sharp increase in resistance may in this regard signal a problem that calls for attention.
For areas where drought is common, the implementation of a moisture retention system near the electrodes should be considered. This may be done by installing a water pipe close to the electrode or utilizing hygroscopic salts that can attract and retain moisture.
5.3 Protection from Physical Damage
Provide physical protection to all accessible parts of the earthing installation wherever excavation or construction activity is expected.
5.4 Documentation and Record-Keeping
Also, a detailed recording of installation, testing, and maintenance activity should be carried out, as this may be very useful when it comes to troubleshooting and showing regulatory compliance.
Conclusion
The copper-bonded earthing electrodes represent the extremity of grounding technology, offering the right balance between performance, durability, and cost effectiveness. Done in the right process, choosing this electrode together with the right installation and maintenance practices, will bring about a reliable and effective earthing system which could last longer in protecting your electrical infrastructure.
Whether it is expansion into a new product line for a manufacturer or finding the best grounding solution for an end user, copper-bonded earthing electrodes are quite deserving of serious consideration. Considering the unique construction, unrivaled performance, and long-term reliability, it makes for a very good investment in the safety and efficient operation of any electrical system.
Remember, whether it’s for electrical safety or system performance, some aspects just cannot be compromised when it comes to an earthing system. Choose quality copper chemical earthing rods to ensure complete peace of mind in the knowledge that your electrical infrastructure is nothing short of the best-protected installation on the planet.
